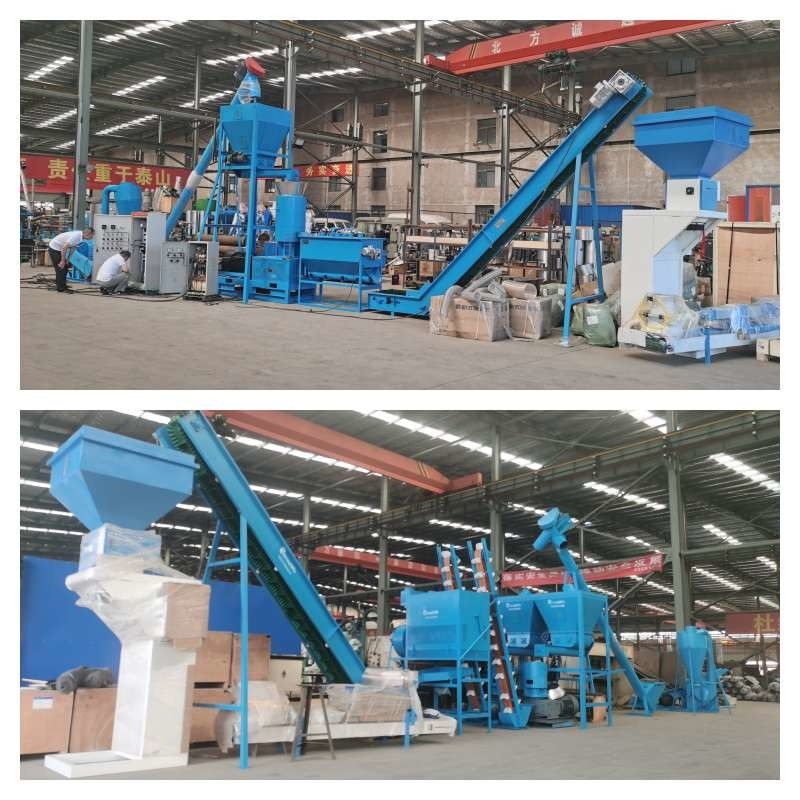

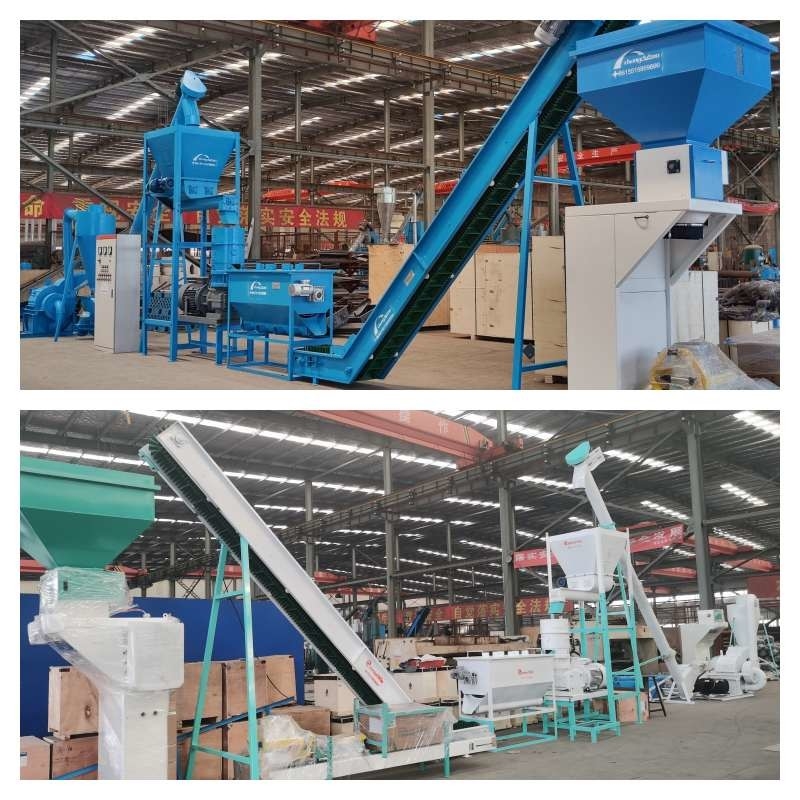

500-800kg/H 1t/H Wood Pellet Production Line CE Biomass Pellet Production Line

                         600-800kg/h 1T/h Wood Pellet Production Line Exported To Europe With CE Certificate

Product Description

Through our research and development, complete plants are manufactured to produce wood fuel pellets. The main equipment includes crushing and dust removal process, drying process, granulation process, cooling process and packaging process. It has the advantages of compact structure, beautiful appearance, high output, less consumption, convenience and reliable performance.

1. Crushing process of automatic particle production line
Description: The ideal size for pellets is 3 - 5 mm. If your biomass feedstock is larger than 5 mm in size, it should be shredded with a wood chipper/shredder/hammer mill.
Question 1: What is your biomass raw material? Please let us know its dimensions, such as diameter or thickness.

2. Drying process of automatic granule production line
Description: Optimum moisture/humidity for granulation is 10 - 15%. If your raw material is too wet, you should use our airflow dryer or rotary dryer for drying, they can reduce the moisture from 30~60% to 10~15%.
Question 2: What is the original moisture content/humidity of your raw materials?

3. The pelletizing process of our wood pellet production line:
Description: Wood pellet machine is a professional equipment for producing high-density biomass fuel pellets.

The detailed features are as follows:
1. European standard, with CE certification
2. The mold and roller are made of alloy steel, with a hardness above 52 and a service life of up to 800 hours
3. Warranty time is 2 years
4. Automatic lubricating pump system, low consumption, can run continuously for 24 hours
5. High-precision gears and automatic lubricating oil pump system ensure the stability of the gearbox

The output of the whole wood pellet production line can be 0.5T/H, 1-1.2T/H, 1.5-2T/h, 2-3T/h, 5T/h, 6-8T/h, 8-12T/hour, 10- 15 tons/hour. We can design a complete wood pellet production line according to your material conditions and capacity needs.
What output capacity do you want? (In addition to the above capacity, we also accept customization)


Specification

The following are the parameters of the equipment in the production line


Raw Materials


• The raw materials that can be used as pellet processing are as follows:


1. Crop residues: Crop residues include cotton stalks, wheat straw, rice straw, corn stalks, corn cobs and straws of some other grains.
2. Sawdust sawed by band saw: The sawdust sawed by band saw has the best granulation size, the production of granules is stable, the granules are smooth, high hardness, and low energy consumption.
3. Small wood shavings in furniture factories: Because the particle size is relatively large, it is not easy to enter the wood pellet machine, so it is easy to block, so the wood shavings need to be crushed before use.
4. Sanding powder for board factories and furniture factories: sanding powder has a light specific gravity, it is not easy to enter the wood pellet machine, and it is easy to block. It is recommended to mix wood chips together for granulation, and the proportion can be about 50% each to achieve the best effect.
5. Cuttings of wood boards and wood chips: The cuttings of wood boards and wood chips can only be used after crushing.


FAQ

Q1: Can you accept my own logo on the line or customize my idea?

A: Yes, no problem

Q2: What could I benefit from VIP status?

A: Discount for every order, free service

Q3. When will make the delivery?

A: 25-30 working days after receipt of 30% deposit. Balance payment need to be finished before shipment.

Q4: When the goods can be receive?

A: It depends on your location, the loading port.

Q5: What if products have some quality problem?

A: This situation rarely happen due to our very strict quality control on every products.Contact us immediately and we believe we can solve it out with your satisfaction.
